STボックス
A steel container that helps to save space and transport costs. Ideal for returnable boxes for overseas use.

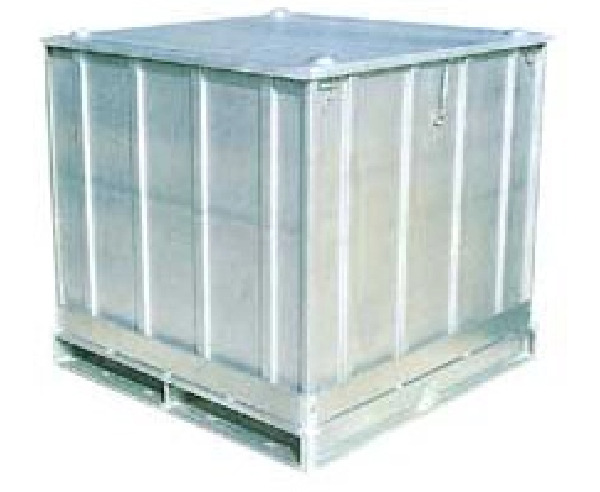

This steel container allows products to be loaded and unloaded from any side, and provides strong protection against changes in weather and dust. Collapses to 1/4 of its size, saving space and transport costs, and can be reused repeatedly. All-steel construction for compatibility with products that cannot be transported in wooden containers.
Primary Applications
- Containers for transporting goods between factories and companies
- Containers for transporting goods in bulk to distribution centers and overseas
- Containers for storing goods in factories and warehouses
- Containers for transporting and storing various types of powder using inner bags
Standard Specifications
| Name | Returnable containers ST-Box | ||||
|---|---|---|---|---|---|
| Type | 1,000-type | 1,100-type | 1,500-type | ||
| Dimensions | External W×L×H | mm | 1,000 × 1,000 × 950 | 1,100 × 1,100 × 950 | 1,500 × 1,100 × 1,050 |
| Internal W×L×H | mm | 930 × 930 × 825 | 1,050 × 1,050 × 900 | 1,430 × 1,000 × 905 | |
| Dimensions when collapsed (W×L×H) | mm | 1,000 × 1,000 × 215 | 1,100 × 1,100 × 215 | 1,500 × 1,100 × 215 | |
| Internal volume | m3 | 0.71 | 0.99 | 1.29 | |
| Self-weight | kg | 60 | 65 | 130 | |
| Anti-compression static load capacity | 10 tonnes | 10 tonnes | 10 tonnes | ||
| Main materials | Steel, stainless steel | ||||
Our products are designed and manufactured to order based on customer requirements. We manufacture them in steel, stainless steel, and other materials. Provide us with the dimensions you need or any other specifications.
