NX-Model
This easy-to-assemble, collapsible container is ideal for returnable boxes.
This collapsible and assembled container with plywood panels collapses to 1/3 of its size, which improves work efficiency and delivers significant value for long-distance transport. The container also reduces the amount of cardboard and cushioning materials necessary, contributing to the achievement of the SDGs and reducing CO2 emissions.
Primary Applications
The STEC NX-Model is ideal for returnable boxes that can be used repeatedly. Can be stacked in tiers for improved storage and transport efficiency.
Plywood panels make it easier to handle heavy loads.
Compatible with automated equipment.
STEC NX-Model Applications
- Containers for transporting goods between factories and companies
- Containers for storing goods in factories and warehouses
- Containers for transporting bulk goods to distribution centers
- Containers for transporting goods overseas
Examples
Transporting and storing preforms, semiconductor components, chemical raw materials, food products, pharmaceuticals, and automotive parts, and recovering flexible intermediate bulk containers
Structure

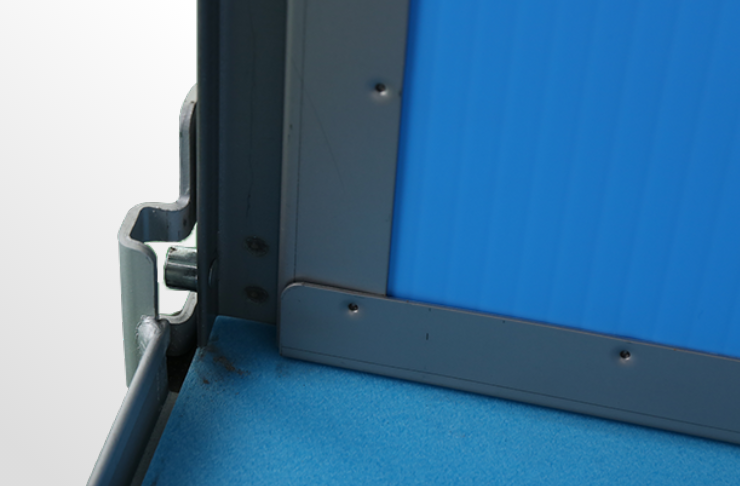

Bottom of the fixing side panel assembly

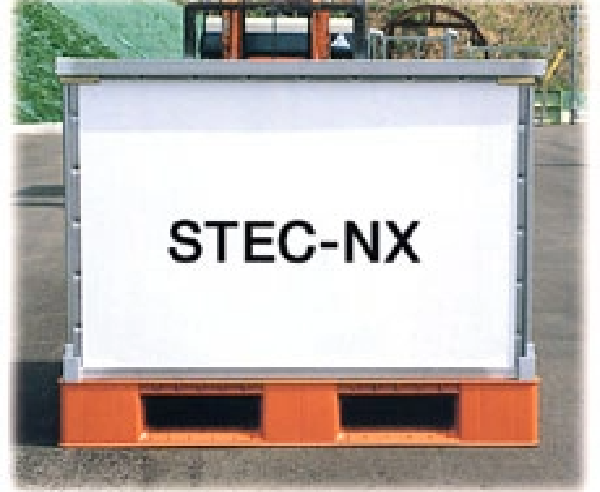

External view
Internal view
Top part of the fixing side panel assembly
Right after the insertion side panel is inserted
Slide diagonally upwards and lock
Side panel assembly is complete
Structure is easy to assemble and collapse while also very stable, with almost no wobble.
Standard Specifications
| Name | Collapsible and Assembled Containers (Plywood) STEC NX-Model | ||
|---|---|---|---|
| Type | NX-Model | ||
| Dimensions | External W×L×H | mm | 1,100 × 1,100 × 1,070 |
| Internal W×L×H | mm | 1,037 × 1,037 × 900 | |
| Volume | m3 | 0.97 | |
| Dimensions when collapsed (W×L×H) | mm | 1,100 × 1,100 × 247 | |
| Self-weight | kg | 75 | |
| Side panel finishes | Available in plywood with MDF film on one side or MDF film on both sides; select according to application | ||
| Optional | Side panel markings (company name, company logo, product name, number, etc.), fabric fastening bands, rubber fastening bands | ||
Note: Plastic pallets are standard, but wooden and steel pallets are also available.
Our products are designed and manufactured to order based on customer requirements. Provide us with the dimensions you need or any other specifications.
