Contract Coating
Equipment and Processing Technologies
With expertise in wide-width cast film manufacturing and our high-temperature drying facilities, we can handle water-based and solvent-based coating. We can also offer adhesive sheets and acrylic foam materials as well as PVC cast films, based on ZEON KASEI’s proprietary foaming film technology. In addition, we not only provide analytical support using the research facilities and equipment of our parent company, Zeon Corporation, but also possess over 20 years of expertise in film manufacturing and coating technologies and our own quality assurance system to deliver the best solutions for customer needs.
| Material width available for processing | 800 mm–1,500 mm |
|---|---|
| Material thickness available for processing | 38 μm-few hundred μm (inquire for details) |
| Types of materials available for processing | PET, synthetic paper (inquire for details) |
| Coating method | Comma coating |
| Drying furnace specifications | Furnace 1: Max 220°C, 30 m roll support Furnace 2: Max 170°C, 30 m roll support |
| Line speed available for processing | 5–30 m/min |
| Ancillary equipment | Foaming machine, in-line defect detector, WET in-line weighing scale, separator, protective film laminating machine |
| Support for blend of coating liquid formulation | Supported (weighing, stirring, filtration, defoaming, etc.) |
| Cleanliness of coating areas and other parts | General environment (not cleaned) |
| Other owned devices and equipment | Test coater (width up to 400 mm), off-line defect detector |

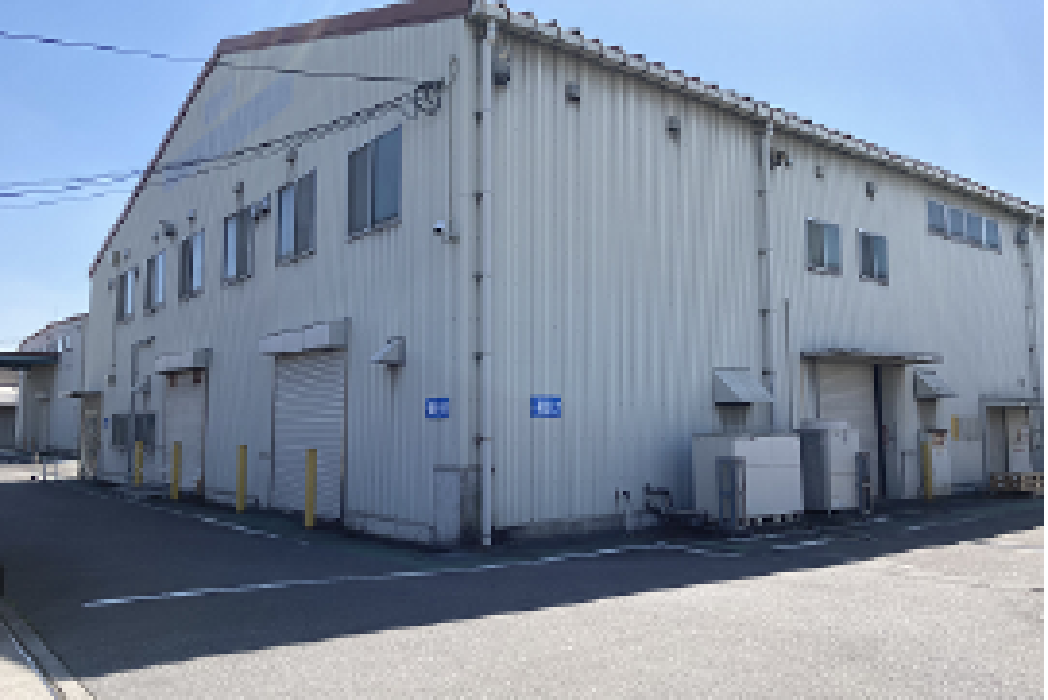

| Processing facility location | Ibaraki Factory (1175 Kami Izushima, Bando-city, Ibaraki, 306-0654) |
High-Performance Cast Films
The casting process is used for the manufacturing lines for our films, which typically have the following features.
Various resins can be made into films
Any resin that is dissolvable or dispersible in a solvent can be made into a film
Very little directional properties
Very little difference in properties between the length direction (MD) and the width direction (TD), in tensile strength, tear strength, and elongation
Films are thin
Supports manufacturing films with a thickness of 5–100 µm
High thickness accuracy
Accuracy of ±2 µm is achieved in the thickness range of 30–100 µm
High filler content
Suitable for various types of fillers (metallic, inorganic, pigmented) at a relatively high blending ratio
Small lot manufacturing
Supports mass production from 500 m
Multilayered
Multilayering with different resins or colors is possible
Representative Applications
- Conductive film
- Electromagnetic wave absorbing sheets
- Metal spacer sheets
- Marking films
- Tamper-proof films
